Irrigation Fittings
-
Elbow 90º (F. Threaded – S. Gluing)
5070 - 7070
Load MoreCode Specifications (mm x inch)
PN (atm)
Packing (pcs/bag)
Packing (pcs/cart)
7070/2001 20 x ½″ 16 10 250 7070/2502 25 x ¾ 16 10 300 A 7070/3203 32 x 1″ 16 10 180 A 7070/4004 40 x 1 ¼″ 16 - 120 A 7070/5005 50 x 1 ½″ 16 - 120 H 5070/6306 63 x 2″ 16 - 50 E 5070/7507 75 x 2 ½″ 16 - 30 E 5070/9008 90 x 3″ 16 - 20 E 5070/1109 110 x 4″ 16 - 15 H -
Elbow 90º Threaded
5073 - 7073
Load MoreCode Specifications (inch)
PN (atm)
Packing (pcs/cart)
7073/0101 ½″ x ½″ 16 600 A 7073/0202 ¾″ x ¾″ 16 300 A 7073/0303 1″ x 1″ 16 170 A 7073/0404 1 ¼″ x 1 ¼″ 16 100 Α 7073/0505 1 ½″ x 1 ½″ 16 60 A 5073/0606 2″ x 2″ 16 50 E 5073/0707 2 ½″ x 2 ½″ 16 30 E 5073/0808 3″ x 3″ 16 20 E 5073/0909 4″ x 4″ 16 15 H -
Elbow Coupling F-F
3217
Load MoreCode Specifications (inch)
Packing (pcs/bag)
Packing (pcs/cart)
3217/0303 1″ x 1″ 10 300 H -
Elbow Coupling M-F
3218
Load MoreCode Specifications (inch)
Packing (pcs/bag)
Packing (pcs/cart)
3218/0303 1″ x 1″ 10 400 H -
Elbow Female Thread 10 atm
3283-4283
Load MoreCode Specifications (mm x inch)
Packing (pcs/bag)
Packing (pcs/cart)
4283/0201 20 x ½″ 20 360 H 4283/0202 20 x ¾″ 20 360 H 4283/0252 25 x ¾ 20 260 Η 4283/0253 25 x 1″ 20 240 H 3283/0322 32 x ¾″ 50 200 H 3283/0323 32 x 1″ 50 150 H 3283/0404 40 x 1 ¼″ 5 90 H 3283/0505 50 x 1 ½″ - 55 H 3283/0636 63 x 2″ - 30 H 4283/0757 75 x 2 ½″ - 20 H 4283/0908 90 x 3″ - 12 H 4283/1109 110 x 4″ - 7 H ∗ With reinforcing ring
-

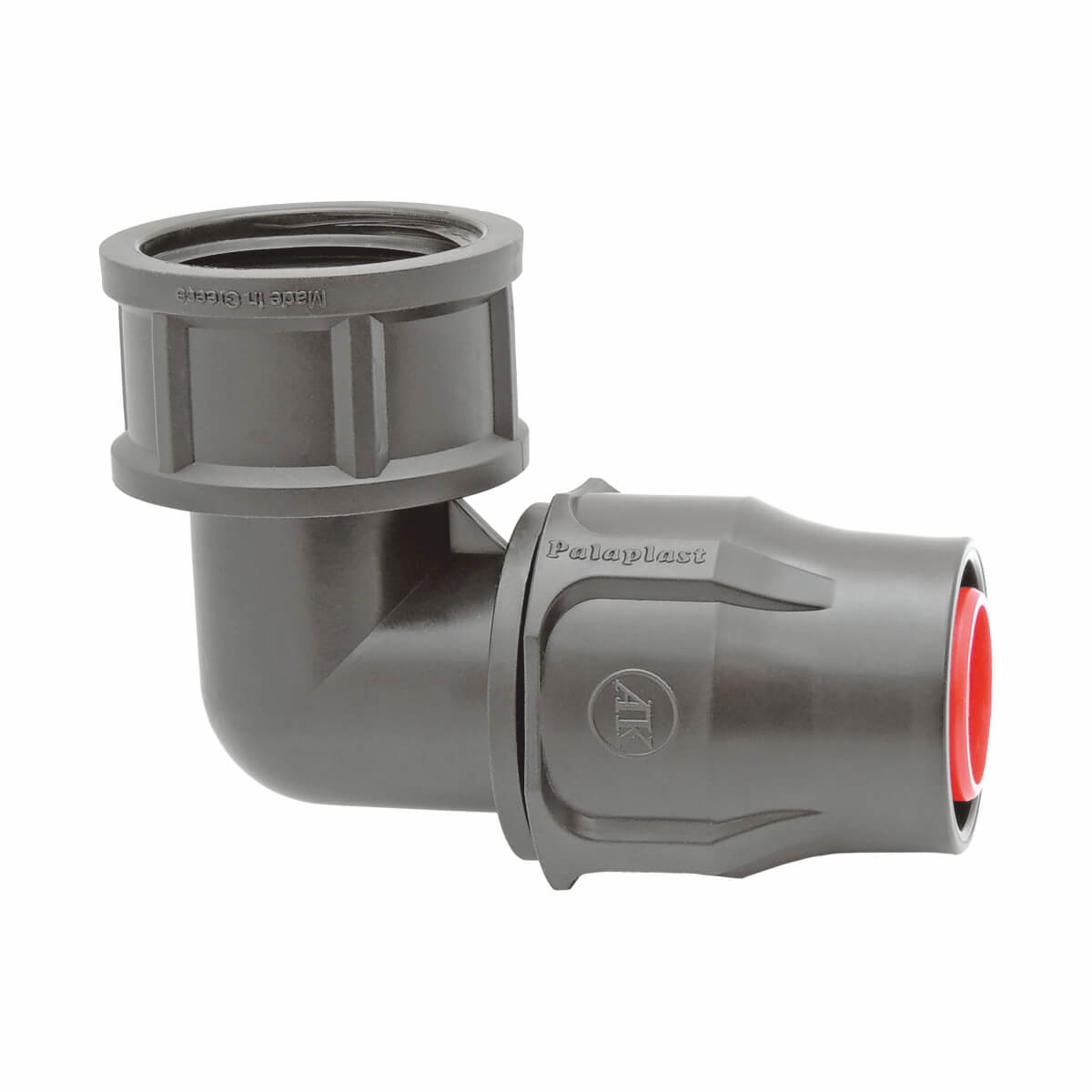

Elbow Female Threaded Lock 6 ATM
3296
Load MoreCode Specifications (mm x inch)
Packing (pcs/bag)
Packing (pcs/cart)
3296/0161 16 x ½″ 50 550 H 3296/0162 16 x ¾″ 50 450 Η 3296/0163 16 x 1″ 50 350 H 3296/0201 20 x ½″ 50 450 Η 3296/0202 20 x ¾″ 50 450 Η 3296/0203 20 x 1″ 50 400 H 3296/0251 25 x ½″ 50 400 H 3296/0252 25 x ¾ 50 300 H 3296/0253 25 x 1″ 50 250 H 3296/0322 32 x ¾″ 50 200 H 3296/0323 32 x 1″ 50 150 H -
Elbow Indented Female Nipple
3183
Load MoreCode Specifications (mm x inch)
Packing (pcs/bag)
Packing (pcs/cart)
3183/0161 16 x ½″ 100 1700 H 3183/0162 16 x ¾″ 100 1200 H 3183/0201 20 x ½″ 100 1300 H 3183/0202 20 x ¾″ 100 900 H -
Elbow Indented Male Nipple
3182
Load MoreCode Specifications (mm x inch)
Packing (pcs/bag)
Packing (pcs/cart)
3182/0201 20 x ½″ 100 1600 H 3182/0202 20 x ¾″ 100 1300 H 3182/0251 25 x ½″ 100 1300 H 3182/0252 25 x ¾ 100 1000 H 3182/0253 25 x 1″ 100 800 H
