  • Butt-fusion Units

    4507

    Code Model Pipes & Fittings dimension Operation
    4507/1160 RZH 160 63mm - 160mm Semi-Hydraulic
    4507/1250 RZ 250 75mm - 250mm Hydraulic
    4507/1315 RZ 315 90mm - 315mm Hydraulic
    4507/1500 RZ 500 180mm - 500mm Hydraulic
    PE/PP/PVDF pipes can be welded
    Load More
  • Metallic Flange (for PE Stub Flange)

    4418

    Code Flange

    (DN - mm)

    Pipe

    (mm)

    Holes Bolts
    4418/0063 50 63 4 M-16
    4418/0075 65 75 4 M-16
    4418/0090 80 90 8 M-16
    4418/0110 100 110 8 M-16
    4418/0125 125 125 8 M-20
    4418/0140 125 140 8 M-20
    4418/0160 150 160 8 M-20
    4418/0180 150 180 8 M-20
    4418/0200 200 200 12 M-20
    4418/0225 200 225 12 M-20
    4418/0250 250 250 12 M-24
    4418/0280 250 280 12 M-24
    4418/0315 300 315 12 M-24
    Load More

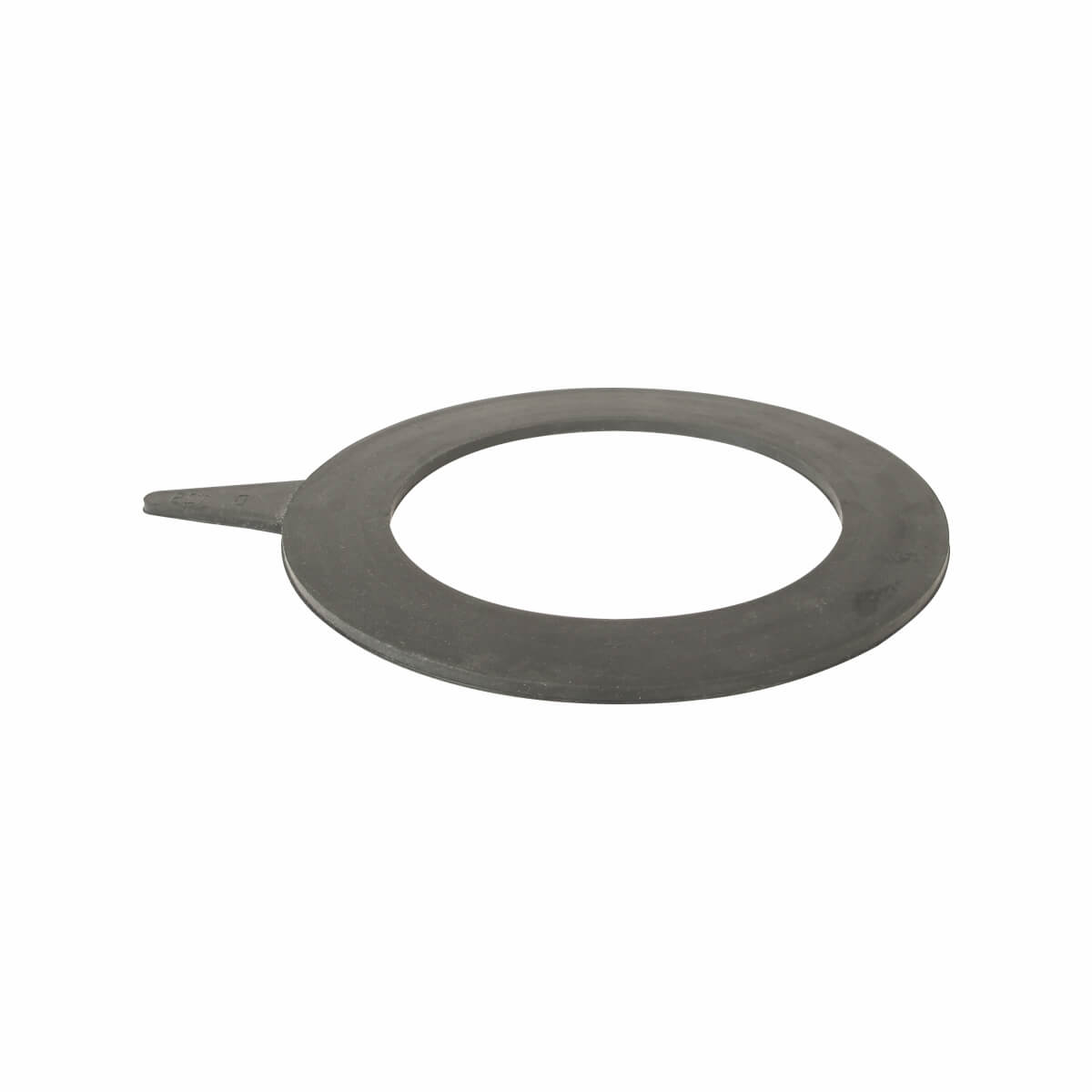

  • Rubber Gasket for Flange

    7109

    Code Specifications

    (mm)

    7109/0063 63
    7109/0075 75
    7109/0090 90
    7109/0110 110
    7109/0125 125
    7109/0140 140
    7109/0160 160
    7109/0200 200
    7109/0225 225
    7109/0250 250
    Load More
  • Metallic Quick Flange (for PE pipes)

    4428

    Code Flange

    (DN - mm)

    Pipe

    (mm)

    4428/0063 50 63
    4428/0075 65 75
    4428/0090 80 90
    4428/0110 100 110
    4428/0125 125 125
    4428/0140 125 140
    4428/0160 150 160
    4428/0200 200 160
    Load More
  • Stub Flange

    4930

    Code Specifications

    (mm)

    4930/1063 63
    4930/1075 75
    4930/1090 90
    4930/1110 110
    4930/1125 125
    4930/1140 140
    4930/1160 160
    4930/1180 180
    4930/1200 200
    4930/1225 225
    4930/1250 250
    4930/1280 280
    4930/1315 315
    Load More
  • Tee

    4935

    Code Specifications

    (mm)

    4935/1063 63
    4935/1075 75
    4935/1090 90
    4935/1110 110
    4935/1125 125
    4935/1140 140
    4935/1160 160
    4935/1180 180
    4935/1200 200
    4935/1225 225
    4935/1250 250
    4935/1280 280
    4935/1315 315
    Load More
  • Reducing Tee

    4937

    Code Specifications

    (mm)

    4937/9063 90 x 63 x 90
    4937/9075 90 x 75 x 90
    4937/1163 110 x 63 x 110
    4937/1190 110 x 90 x 110
    4937/1290 125 x 90 x 125
    4937/1690 160 x 90 x 160
    4937/1611 160 x 110 x 160
    4937/1890 180 x 90 x 180
    4937/1811 180 x 110 x 180
    4937/2063 200 x 63 x 200
    4937/2090 200 x 90 x 200
    4937/2011 200 x 110 x 200
    4937/2016 200 x 160 x 200
    Load More
  • Elbow 90°

    4940

    Code Specifications

    (mm)

    4940/1063 63
    4940/1075 75
    4940/1090 90
    4940/1110 110
    4940/1125 125
    4940/1140 140
    4940/1160 160
    4940/1180 180
    4940/1200 200
    4940/1225 225
    4940/1250 250
    4940/1280 280
    4940/1315 315
